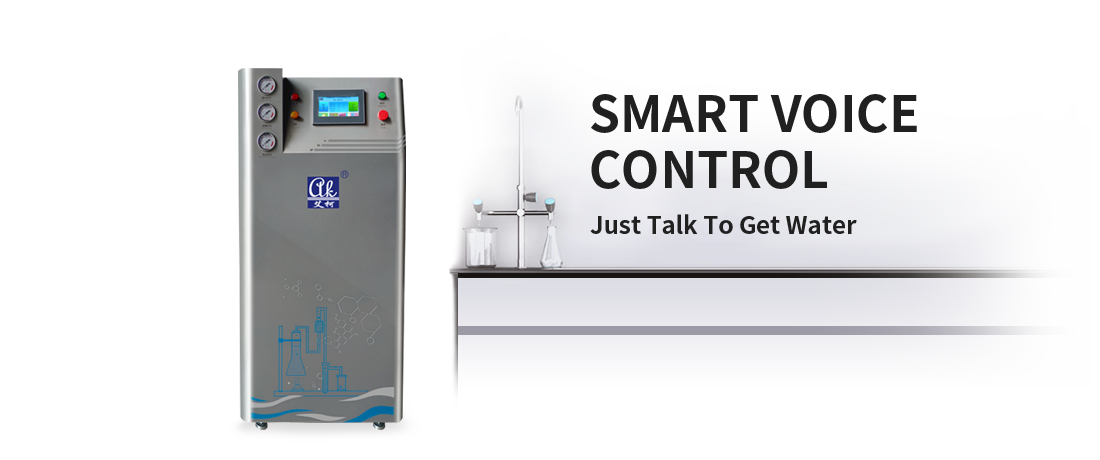

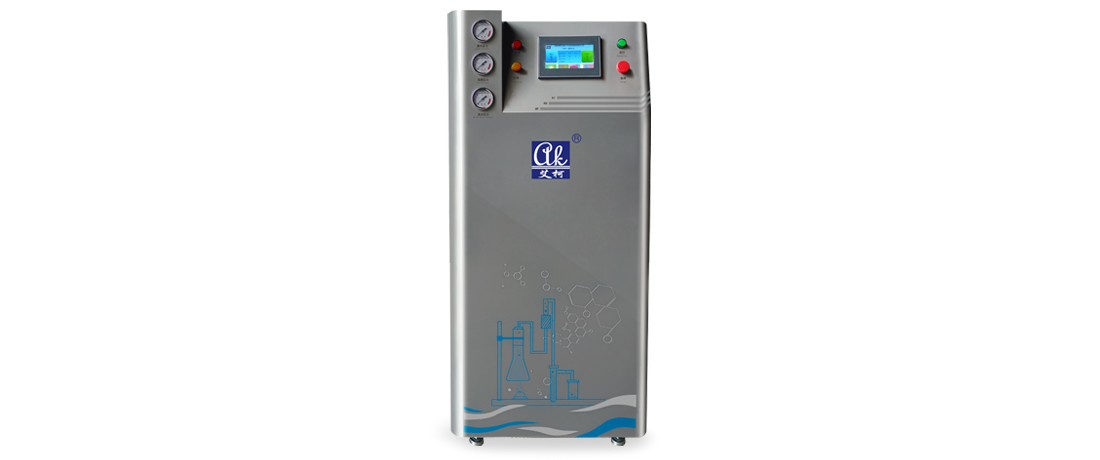

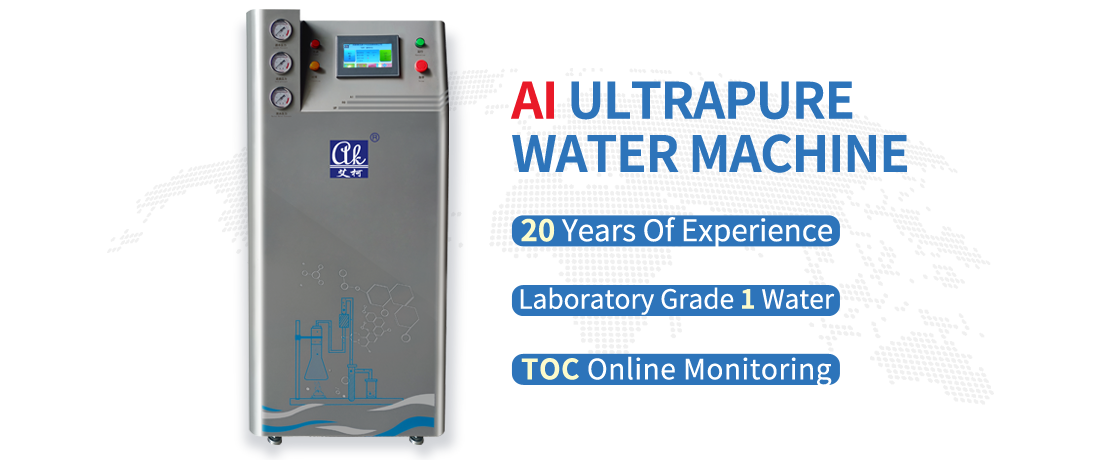

TThe AiKe AI Artificial Intelligence Laboratory Ultra-Pure Water System is equipped with AiKe’s self-developed 4G Internet of Things (IoT) technology, enabling remote operation via mobile phones or computers. It features microcomputer-based full automation and a programmable logic controller (PLC) IoT module, boasting user-friendly design, compact footprint, and effortless operation. This versatile system produces multiple water qualities simultaneously—purified water, RO pure water, and UP ultra-pure water—with a selectable output capacity of 100–200 L/H. The electrical conductivity of RO water meets ≤5 μS@25°C, while the ultra-pure water exceeds Grade I standards specified in GB6682-2008, comprehensively satisfying diverse requirements for cleaning, experimentation, analysis, research, and other applications.
| Specification | Detailed Parameters |
|---|---|
| machine category | AK-AIZN-EDI-UP |
| SeriesModel Number | AK-AIZN-EDI-UP-100 |
| Water source | Urban tap water temperature 5-40°C, water pressure 1-5kg, TDS <350ppm |
| Power supply | 380V/50HZ |
| Power | 1.2KW |
| Machine weight | 200㎏ |
| Host size | Length: 650 mm × Width: 900 mm × Height: 1388 mm |
| Types of water intake | Multi-functional machine capable of simultaneously preparing and dispensing various water types: purified water, RO purified water, UP ultrapure water |
| Water production capacity | 100L-200L/H |
| Water intake flow rate | Drinking purified water: 3.4L/min RO pure water: 3.2L/min UP ultrapure water: 3L/min |
| Water Quality | Specification |
|---|---|
| Drinking water quality | &Conductivity ≤10μS/cm @25℃ |
| RO pure water quality | The water quality meets the Chinese national standard for bottled purified drinking water (GB17324-1998). |
| Conductivity ≤5μS/cm@25℃; Resistivity ≥0.2MΩ·cm@25℃; Impurity removal rate 98% | |
| The water quality meets the Grade 3 standard of China's national laboratory water (GB6682-2008) and surpasses that of ordinary distilled water. | |
Ultrapure water quality |
|
| Resistivity | Resistivity 18.25 MΩ·cm @25℃ |
| Electrical conductivity | ≈0.055μS/cm@25℃ |
| heat source | ﹤0.01Eu/ml |
| microorganism | ﹤1cfu/ml |
| Total Organic Carbon | TOC:<1ppb |
| Cation content | <0.01ppb |
| Anion content | <0.02ppb |
The AKZY-RO-EDIUP series ultrapure water machine is designed with AK's exclusive fully automated control system. It features an integrated modular design, occupies a small footprint, and facilitates easy replacement of consumables. The system offers a selectable water production capacity ranging from 200 L/H to 1000 L/H.
The AiKe New Generation CLassic Series Laboratory Ultrapure Water System features a 5-inch LCD touch screen, built-in printer, water production capacity of 8-40 liters/hour, and dual-purpose design that simultaneously produces purified water and ultrapure water.
AiKe Miniature series ultra-pure water purifier for micro intelligent terminals features compact footprint, real-time display of water quality resistivity, water intake temperature, TOC and flow rate, with terminal microfiltration configuration.
The Advanced series ultrapure water machine incorporates the ELITE water treatment technology developed by AiKe, with multiple system modules upgraded. Under the same water usage standards, the service life of consumables has been extended by 20% compared to the previous generation. It features a built-in ultrapure water circulation program, with a selectable water production capacity ranging from 4 to 60 liters per hour.
The new generation Exceed series ultrapure water system rapidly produces ultrapure water and purified water, with optional output capacity ranging from 6-100 liters/hour. The ultrapure water resistivity reaches 18.25MΩ·cm.
complying with Grade 1 water quality standards established by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP, and USP.
