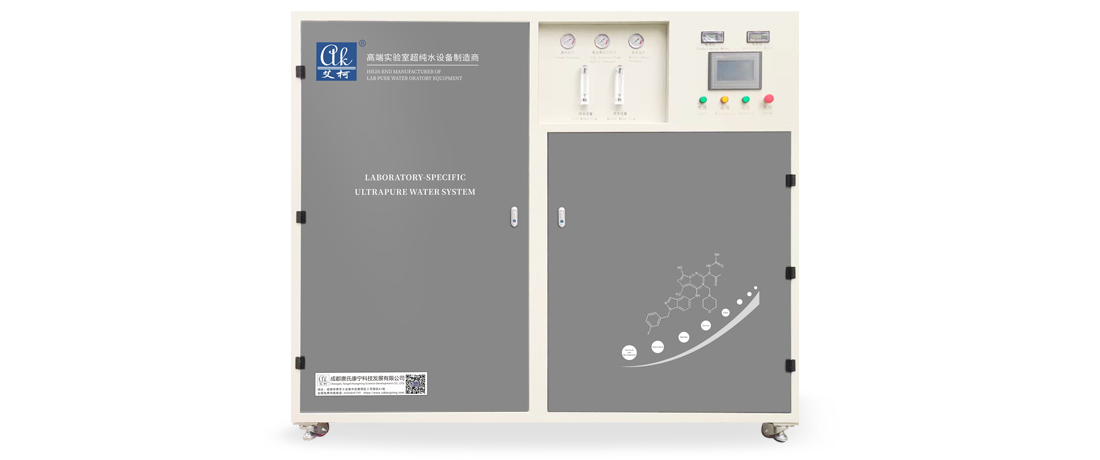

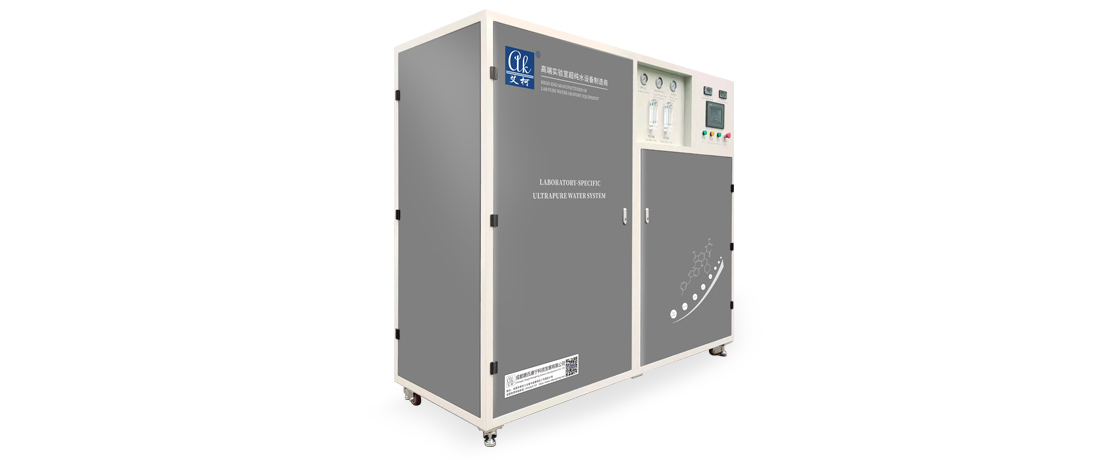

The AKZY-RO-EDIUP series integrates AK's proprietary fully automated control system, specifically developed to meet laboratory water demands for biological analysis, pharmaceutical composition testing, and other precision applications. Featuring an integrated modular design, this system minimizes footprint while enabling easy consumable replacement and scalable water treatment upgrades. Its intelligent post-processing system ensures stable operation, rapidly producing purified water (RO) and ultra-pure water (UP) that consistently meet technical specifications.
Technical Specifications:Production Capacity: 200L/H–1000L/H (configurable options),Water Quality:RO Purified Water: Surpasses GB6682-2008 Grade 3 standards;Ultra-Pure Water: Exceeds GB6682-2008 Grade 1 standards.
| Specification | Detailed Parameters |
|---|---|
| machine category | AKZY Series |
| SeriesModel Number | AKZY-RO-EDIUP-II |
| Water source | City tap water temperature 1-45°C water pressure 1-5kg TDS<1000ppm |
| Power supply | 380V Three-Phase Five-Wire |
| Power | 3KW-5KW |
| Machine weight | 300KG-500KG |
| Host size | Length:2180 mm × Width: 780 mm × Height: 1730 mm |
| Types of water intake | An integrated pure water/ultrapure water system, featuring a three-in-one function, can simultaneously produce and dispense three types of water quality: RO (Reverse Osmosis) pure water, EDI (Electrodeionization) water, and UP (Ultrapure) water. |
| Water production capacity | 200L-1000L/H |
| Water Quality | Specification |
|---|---|
| RO pure water quality | Conductivity:<5 μS/cm @ 25℃ |
| Impurity removal rate: 98%. | |
| EDI water quality | 15-17ΜΩ.cm@25℃ |
Ultrapure water quality |
|
| Resistivity | Resistivity 18.25 MΩ·cm @25℃ |
| Anion and cation content | ﹤0.5ppb |
AiKe AI Artificial Intelligence Laboratory ultra-pure water system can be connected to mobile phones or computers for remote control of the entire system, with a small footprint, access to various water qualities such as purified water, RO pure water, UP ultra-pure water, and a production capacity of 100-200L/H.
The AiKe New Generation CLassic Series Laboratory Ultrapure Water System features a 5-inch LCD touch screen, built-in printer, water production capacity of 8-40 liters/hour, and dual-purpose design that simultaneously produces purified water and ultrapure water.
AiKe Miniature series ultra-pure water purifier for micro intelligent terminals features compact footprint, real-time display of water quality resistivity, water intake temperature, TOC and flow rate, with terminal microfiltration configuration.
The Advanced series ultrapure water machine incorporates the ELITE water treatment technology developed by AiKe, with multiple system modules upgraded. Under the same water usage standards, the service life of consumables has been extended by 20% compared to the previous generation. It features a built-in ultrapure water circulation program, with a selectable water production capacity ranging from 4 to 60 liters per hour.
The new generation Exceed series ultrapure water system rapidly produces ultrapure water and purified water, with optional output capacity ranging from 6-100 liters/hour. The ultrapure water resistivity reaches 18.25MΩ·cm.
complying with Grade 1 water quality standards established by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP, and USP.
