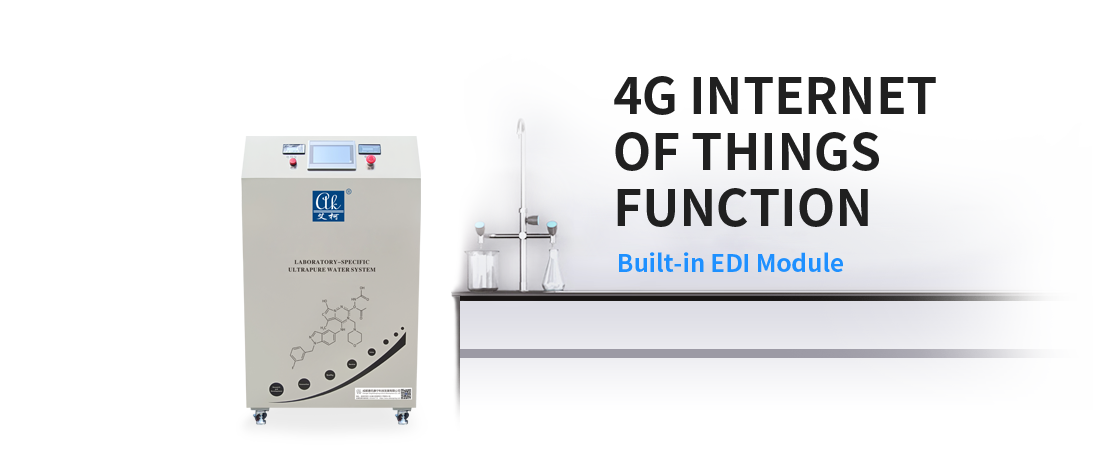

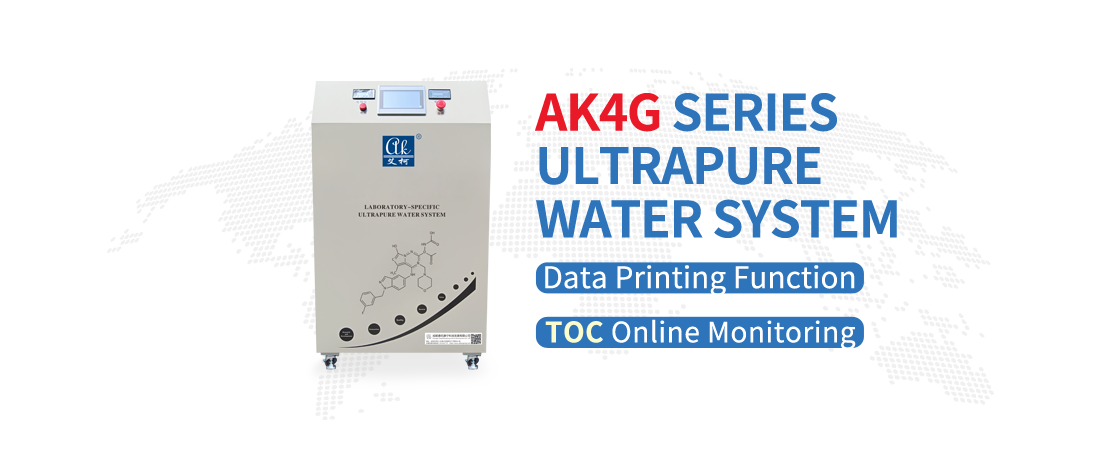

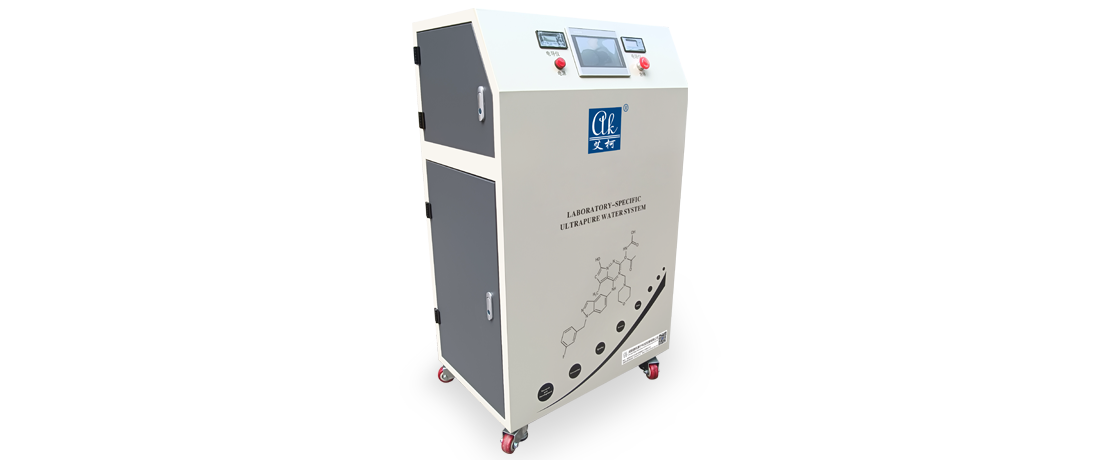

AiKe Laboratories' dedicated 4G Internet of Things (IoT)-enabled ultrapure water system is equipped with AiKe's exclusive 4G IoT technology, allowing for remote operation of the entire system via mobile phones or computers. The equipment features an integrated design, occupying a small footprint and offering convenient operation. It utilizes a combined pure water/ultrapure water system that can simultaneously produce multiple types of water quality, namely pure water and ultrapure water. The system is configured with a dual-path, dual-display, and dual-detection instrument for real-time monitoring of the outlet water quality.
The AK4G-RO-EDIUP series by AiKe offers a selectable water production capacity ranging from 40 L/H to 150 L/H. The conductivity of the RO (Reverse Osmosis) pure water is less than 5 μS/cm at 25℃. The quality of the UP (Ultrapure) water surpasses the Grade I water standard specified in GB6682-2008, comprehensively meeting diverse water requirements for various cleaning, experimental, analytical, and research applications.
| Specification | Detailed Parameters |
|---|---|
| Machine category | AK4G series |
| SeriesModel Number | AK4G-RO-EDIUP-Ⅱ |
| Water source | City tap water temperature 1-45°C water pressure 1-5kg TDS<300ppm |
| Power supply | 220V/50HZ |
| Power | 0.2KW-1KW |
| Machine weight | 100KG-200KG |
| Host size | Length:800 mm × Width: 600 mm × Height: 1200 mm |
| Types of water intake | An integrated pure water/ultrapure water system, featuring a three-in-one function, can simultaneously produce and dispense three types of water quality: RO (Reverse Osmosis) pure water, EDI (Electrodeionization) water, and UP (Ultrapure) water. |
| Water production capacity | 40L-150L/H |
| Water Quality | Specification |
|---|---|
| RO pure water quality | Conductivity:<5 μS/cm @ 25℃ |
| Resistivity ≥ Impurity removal rate: 98% | |
| EDI water quality | 15-17ΜΩ.cm@25℃ |
Ultrapure water quality |
|
| Electrical conductivity | ≤0.055μS/cm@25℃ |
| Resistivity | Resistivity 18.25 MΩ·cm @25℃ |
| Anion and cation content | ﹤0.005Eu/ml |
AiKe AI Artificial Intelligence Laboratory ultra-pure water system can be connected to mobile phones or computers for remote control of the entire system, with a small footprint, access to various water qualities such as purified water, RO pure water, UP ultra-pure water, and a production capacity of 100-200L/H.
The AKZY-RO-EDIUP series ultrapure water machine is designed with AK's exclusive fully automated control system. It features an integrated modular design, occupies a small footprint, and facilitates easy replacement of consumables. The system offers a selectable water production capacity ranging from 200 L/H to 1000 L/H.
The AiKe New Generation CLassic Series Laboratory Ultrapure Water System features a 5-inch LCD touch screen, built-in printer, water production capacity of 8-40 liters/hour, and dual-purpose design that simultaneously produces purified water and ultrapure water.
AiKe Miniature series ultra-pure water purifier for micro intelligent terminals features compact footprint, real-time display of water quality resistivity, water intake temperature, TOC and flow rate, with terminal microfiltration configuration.
The Advanced series ultrapure water machine incorporates the ELITE water treatment technology developed by AiKe, with multiple system modules upgraded. Under the same water usage standards, the service life of consumables has been extended by 20% compared to the previous generation. It features a built-in ultrapure water circulation program, with a selectable water production capacity ranging from 4 to 60 liters per hour.
The new generation Exceed series ultrapure water system rapidly produces ultrapure water and purified water, with optional output capacity ranging from 6-100 liters/hour. The ultrapure water resistivity reaches 18.25MΩ·cm.
complying with Grade 1 water quality standards established by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP, and USP.
