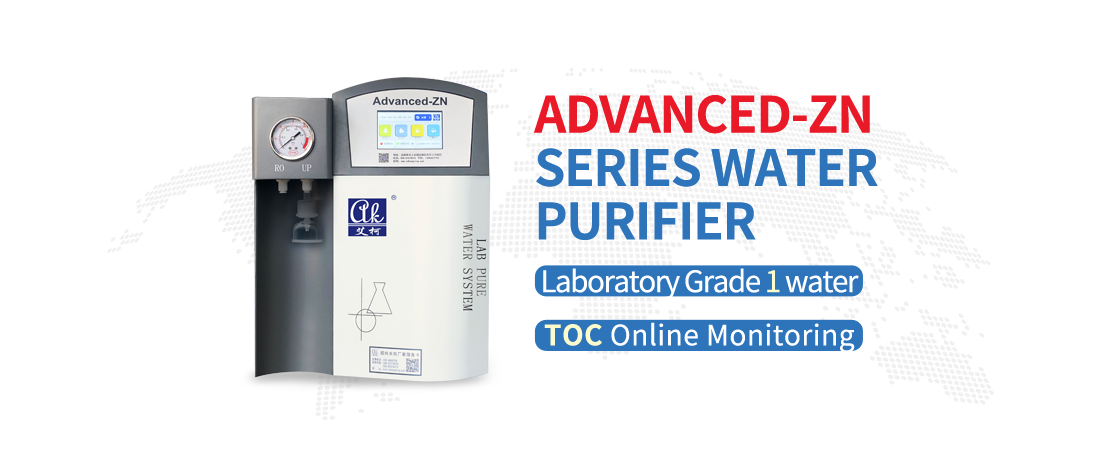

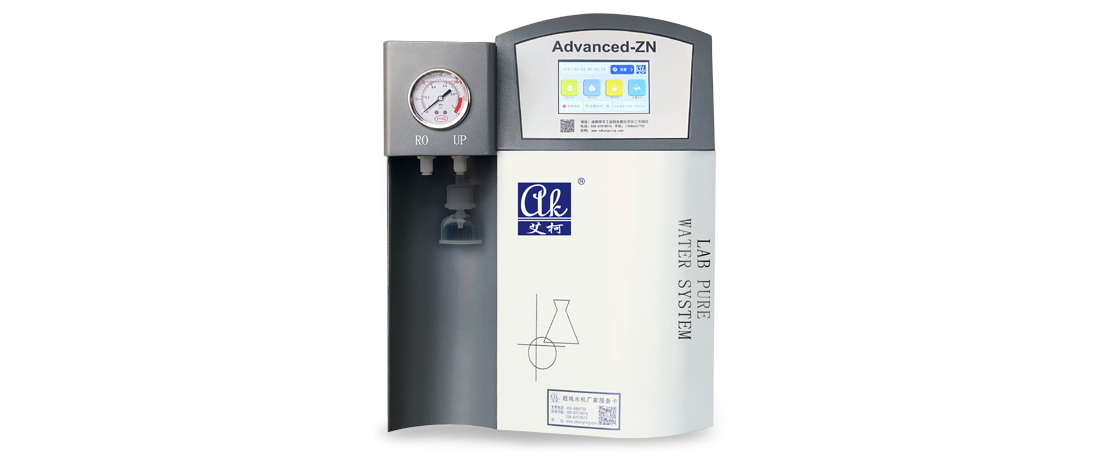

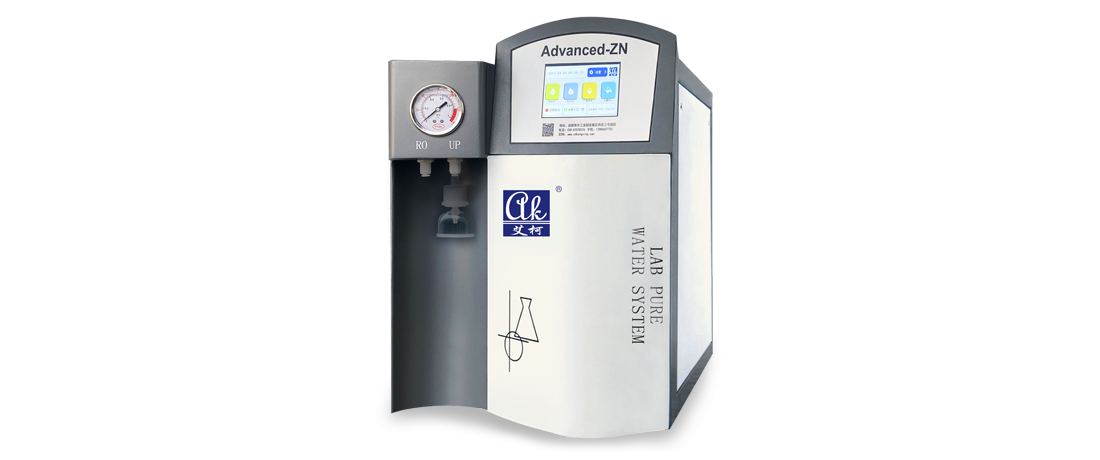

The Advanced-ZN Series High-End Intelligent Laboratory-Specific Ultrapure Water Machine is a premium, intelligent series of laboratory ultrapure water systems meticulously crafted by AiKe's professional technical team for high-end laboratories. The system is equipped with a dedicated Advanced-ZN chip motherboard, optimizing multiple technical modules. It offers intelligent and convenient water extraction while providing superior ultrapure water quality, ensuring a more stable and smooth operational lifespan for the equipment.
The Advanced-ZN system incorporates an electronic precision flow meter, enabling real-time measurement and recording of water extraction flow rates and other data. It offers a dual-function setting, capable of simultaneously meeting various laboratory water needs, including rinsing glassware, routine experimental analysis, and high-end R&D testing. This truly achieves a user-friendly, intelligent, and integrated solution.
| Specification | Detailed Parameters | |
|---|---|---|
| machine category | Advanced series | |
| SeriesModel Number | Advanced-Ⅳ | |
| Water source | City tap water temperature 1-45°C water pressure 1-5kg TDS<650ppm | |
| Power supply | 220V/50HZ | |
| Power | 30W-80W | |
| Machine weight | 35KG-45KG | |
| Host size | Length:385 mm × Width: 450 mm × Height: 450 mm | |
| Types of water intake | An integrated intelligent system for pure water/ultrapure water, featuring dual functionality in a single machine. It can simultaneously produce and dispense two types of water quality: RO pure water and UP ultrapure water. | |
| Water production capacity | 6L-80L/H | |
| Water intake flow rate | RO pure water: 2L/min |
UP ultrapure water: 1.6L/min |
| Water Quality | Specification | |||
|---|---|---|---|---|
| RO pure water quality | Conductivity: 0-4 μS/cm @ 25℃ | |||
| Impurity removal rate: 99.8% | ||||
Ultrapure water quality |
||||
| Resistivity | Resistivity 18.25 MΩ·cm @25℃ | |||
| Heat source | ﹤0.001Eu/ml | |||
| Microorganism | ﹤0.1cfu/ml | |||
| Total Organic Carbon | TOC:0-3ppb | |||
| Ribonuclease (RNases) | < 0.01 ng/ml | |||
| Deoxyribonuclease (DNases) | < 4 pg/ml | |||
| Metal Cation Content (ppb) | Fe (Iron) < 0.003 | Cu (Copper) < 0.003 | Al (Aluminum) < 0.003 | Ni (Nickel) < 0.003 |
| Zn (Zinc) < 0.015 | Cr (Chromium) < 0.004 | Na (Sodium) < 0.01 | K (Potassium) < 0.02 | |
| Anion Content (ppb) | Cl⁻ (Chloride) < 0.01 | NO₂⁻ (Nitrite) < 0.02 | NO₃⁻ (Nitrate) < 0.02 | SO₄²⁻ (Sulfate) < 0.01 |
AiKe AI Artificial Intelligence Laboratory ultra-pure water system can be connected to mobile phones or computers for remote control of the entire system, with a small footprint, access to various water qualities such as purified water, RO pure water, UP ultra-pure water, and a production capacity of 100-200L/H.
The AKZY-RO-EDIUP series ultrapure water machine is designed with AK's exclusive fully automated control system. It features an integrated modular design, occupies a small footprint, and facilitates easy replacement of consumables. The system offers a selectable water production capacity ranging from 200 L/H to 1000 L/H.
The AiKe New Generation CLassic Series Laboratory Ultrapure Water System features a 5-inch LCD touch screen, built-in printer, water production capacity of 8-40 liters/hour, and dual-purpose design that simultaneously produces purified water and ultrapure water.
AiKe Miniature series ultra-pure water purifier for micro intelligent terminals features compact footprint, real-time display of water quality resistivity, water intake temperature, TOC and flow rate, with terminal microfiltration configuration.
The Advanced series ultrapure water machine incorporates the ELITE water treatment technology developed by AiKe, with multiple system modules upgraded. Under the same water usage standards, the service life of consumables has been extended by 20% compared to the previous generation. It features a built-in ultrapure water circulation program, with a selectable water production capacity ranging from 4 to 60 liters per hour.
The new generation Exceed series ultrapure water system rapidly produces ultrapure water and purified water, with optional output capacity ranging from 6-100 liters/hour. The ultrapure water resistivity reaches 18.25MΩ·cm.
complying with Grade 1 water quality standards established by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP, and USP.
