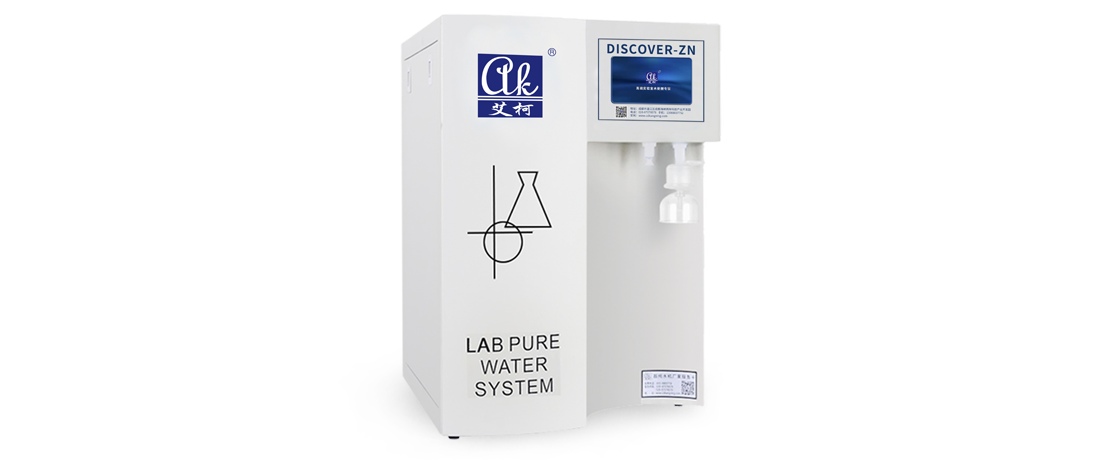

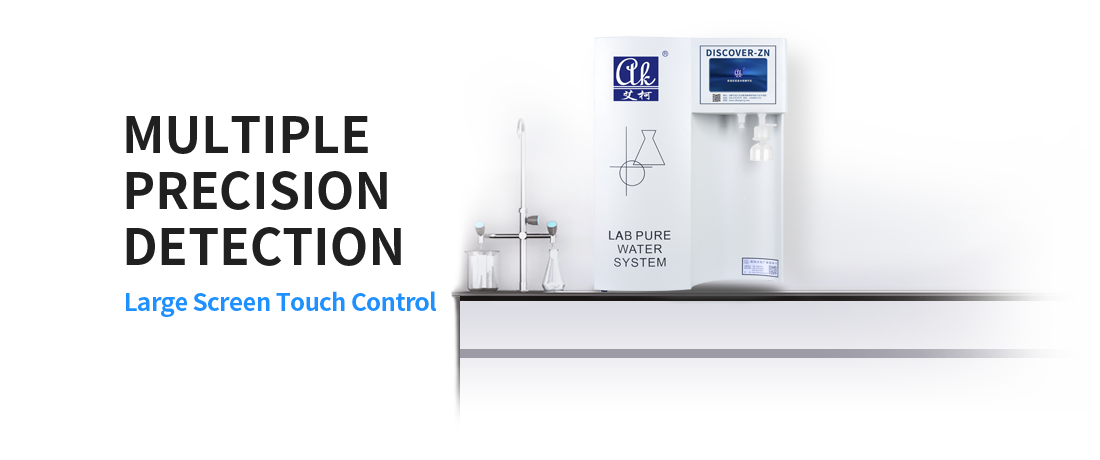

The Discover-ZN series high-end intelligent laboratory-specific ultrapure water machine is a premium, intelligent line of laboratory-specific ultrapure water machines meticulously crafted by AK's professional technical team for high-end laboratories. The system is equipped with a Discover-ZN dedicated chip motherboard, which optimizes multiple technological modules. This not only enables intelligent and convenient water extraction but also provides superior ultrapure water quality while ensuring a more stable and smooth operational lifecycle for the equipment.
The device is newly integrated with a variety of precision detection functions, allowing users to monitor and record the real-time status of both the equipment and water quality at any time.
The Discover-ZN series offers a multi-purpose setup, capable of simultaneously meeting various laboratory water needs, including glassware rinsing, routine experimental analysis, and high-end research and development testing. It truly embodies a user-friendly, intelligent, and integrated design.
| Specification | Detailed Parameters |
|---|---|
| machine category | Discover-ZN series |
| SeriesModel Number | Discover-ZN-Ⅳ |
| Water source | City tap water temperature 5-40°C water pressure 1-5kg TDS<350ppm |
| Power supply | 220V/50HZ |
| Power | Water production capacity of 6-18L per hour for 30W, and 24-30L per hour for 50W |
| Machine weight | 35KG-45KG |
| Host size | Length:440 mm × Width: 450 mm × Height: 570 mm |
| Types of water intake | Multi-functional machine capable of simultaneously preparing and dispensing various water types: purified water, RO pure water, UP ultrapure water |
| Water production capacity | 6L-80L/H |
| Water intake flow rate | Drinking purified water: 2L/min RO pure water: 1.8L/min UP ultrapure water: 1.5L/min |
| Water Quality | Specification |
|---|---|
| Drinking water quality | Conductivity ≤20μS/cm @25℃ |
| RO pure water quality | The water quality meets the Chinese national standard for bottled purified drinking water (GB17324-1998). |
| Resistivity ≥1 MΩ·cm @25℃ | |
| Conductivity ≤1μS/cm@25℃ | |
| The water quality meets the Grade II standard of China National Laboratory Water (GB6682-2008) and is superior to ordinary distilled water. | |
Ultrapure water quality |
|
| Resistivity | Resistivity 18.25 MΩ·cm @25℃ |
| Heat source | ﹤0.001Eu/ml |
| Microorganism | ﹤0.5cfu/ml |
| Total Organic Carbon | TOC:﹤1ppb |
| Cation content | ﹤0.01ppb |
| Anion content | ﹤0.02ppb |
| Ribonuclease | RNases:﹤0.01ng/ml |
| Hydrolytic nuclease | DNases:﹤4pg/ml |
AiKe AI Artificial Intelligence Laboratory ultra-pure water system can be connected to mobile phones or computers for remote control of the entire system, with a small footprint, access to various water qualities such as purified water, RO pure water, UP ultra-pure water, and a production capacity of 100-200L/H.
The AKZY-RO-EDIUP series ultrapure water machine is designed with AK's exclusive fully automated control system. It features an integrated modular design, occupies a small footprint, and facilitates easy replacement of consumables. The system offers a selectable water production capacity ranging from 200 L/H to 1000 L/H.
The AiKe New Generation CLassic Series Laboratory Ultrapure Water System features a 5-inch LCD touch screen, built-in printer, water production capacity of 8-40 liters/hour, and dual-purpose design that simultaneously produces purified water and ultrapure water.
AiKe Miniature series ultra-pure water purifier for micro intelligent terminals features compact footprint, real-time display of water quality resistivity, water intake temperature, TOC and flow rate, with terminal microfiltration configuration.
The Advanced series ultrapure water machine incorporates the ELITE water treatment technology developed by AiKe, with multiple system modules upgraded. Under the same water usage standards, the service life of consumables has been extended by 20% compared to the previous generation. It features a built-in ultrapure water circulation program, with a selectable water production capacity ranging from 4 to 60 liters per hour.
The new generation Exceed series ultrapure water system rapidly produces ultrapure water and purified water, with optional output capacity ranging from 6-100 liters/hour. The ultrapure water resistivity reaches 18.25MΩ·cm.
complying with Grade 1 water quality standards established by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP, and USP.
