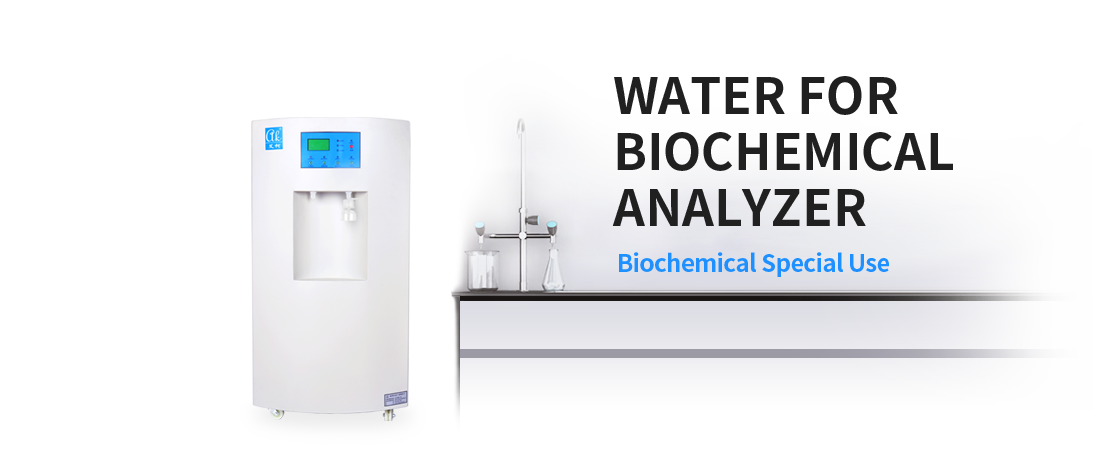

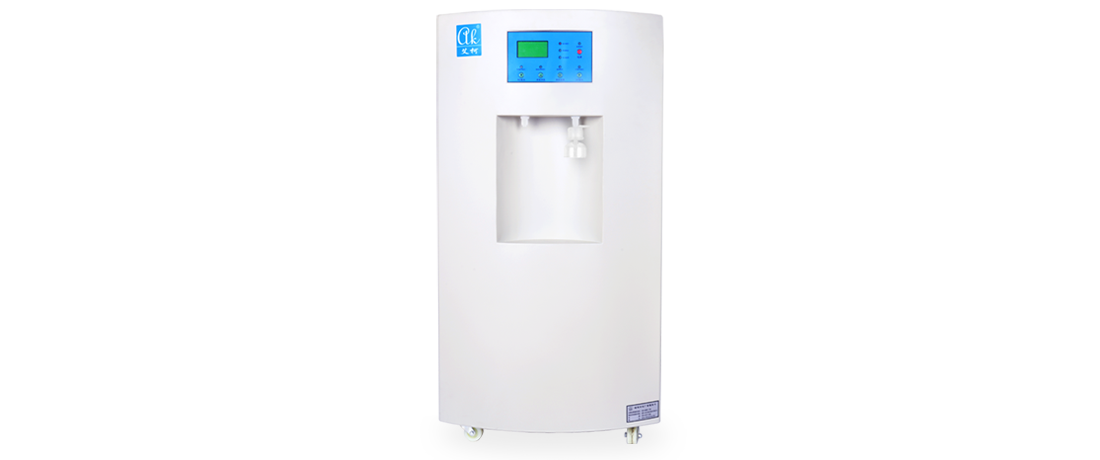

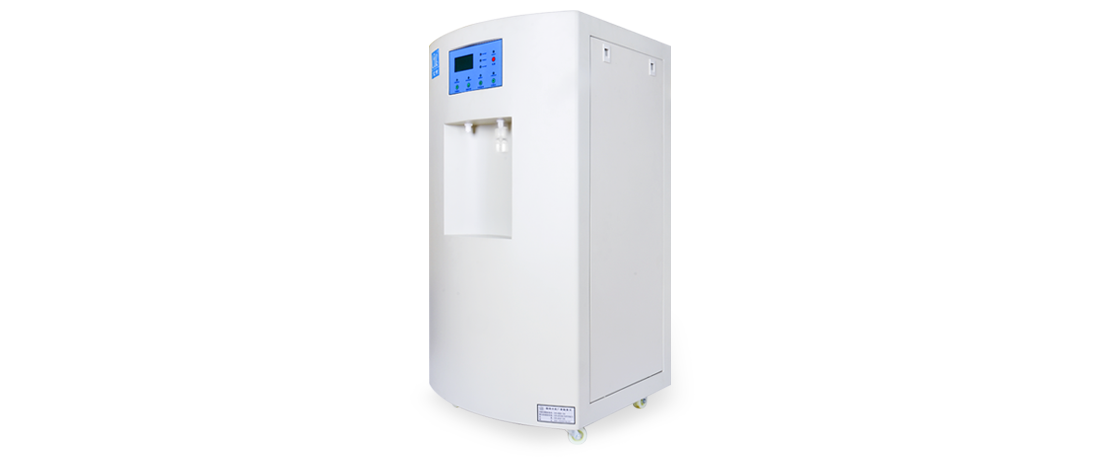

The AiKe Victory specialized ultrapure water machine for biochemical analyzers is designed with AK's exclusive fully automated control system, specifically tailored to meet the water usage requirements of biochemical analysis laboratories. The system features an integrated design, with pre-treatment, RO reverse osmosis (or dual-stage RO reverse osmosis), purification columns, polishing ultrapurification columns, UF ultrafiltration systems, and other components all housed within the machine casing. This design fully embodies integration, modularity, and rapid replacement and maintenance capabilities.
The Victory series offers multiple water production capacity options ranging from 10L/H to 100L/H. The quality of the RO pure water produced exceeds the Grade III water standards specified in GB6682-2008, while the ultrapure water quality can reach the Grade I water standards outlined in GB6682-2008.
| Specification | Detailed Parameters |
|---|---|
| machine category | AK-Victory series |
| SeriesModel Number | AK-Victory-UV |
| Water source | City tap water temperature 1-45°C water pressure 1-5kg TDS<350ppm |
| Power supply | 220V/50HZ |
| Power | 30W-80W |
| Machine weight | 25KG-65KG |
| Host size | Length:510 mm × Width: 500 mm × Height: 1050 mm |
| Types of water intake | The machine offers dual functionality, enabling simultaneous preparation and dispensing of two types of water: RO pure water and UP ultrapure water. |
| Water production capacity | 10L-100L/H |
| Water intake flow rate | RO pure water: 2L/min UP ultrapure water: 1.8L/min |
| Water Quality | Specification |
|---|---|
| RO pure water quality | Conductivity: 0-10 μS/cm @ 25℃, Impurity removal rate: 99.8% |
| The water quality standards surpass those of Grade III water specified in China's National Standard for Laboratory Water (GB6682-2008) and are superior to those of ordinary distilled water. | |
Ultrapure water quality |
|
| Resistivity | Resistivity 18.25 MΩ·cm @25℃ |
| Heat source | ﹤0.001Eu/ml |
| Microorganism | ﹤1cfu/ml |
| Total Organic Carbon | TOC:﹤3ppb |
| Heavy metal content | < 0.1 ppb |
| Silica (SiO₂) content | (mg/L, max): ≤ 0.01 |
| Absorbance | (254 nm, 1 cm path length): ≤ 0.001 |
| Dissolvable silicon (as |
mg/L < 0.01 |
AiKe AI Artificial Intelligence Laboratory ultra-pure water system can be connected to mobile phones or computers for remote control of the entire system, with a small footprint, access to various water qualities such as purified water, RO pure water, UP ultra-pure water, and a production capacity of 100-200L/H.
The AKZY-RO-EDIUP series ultrapure water machine is designed with AK's exclusive fully automated control system. It features an integrated modular design, occupies a small footprint, and facilitates easy replacement of consumables. The system offers a selectable water production capacity ranging from 200 L/H to 1000 L/H.
The AiKe New Generation CLassic Series Laboratory Ultrapure Water System features a 5-inch LCD touch screen, built-in printer, water production capacity of 8-40 liters/hour, and dual-purpose design that simultaneously produces purified water and ultrapure water.
AiKe Miniature series ultra-pure water purifier for micro intelligent terminals features compact footprint, real-time display of water quality resistivity, water intake temperature, TOC and flow rate, with terminal microfiltration configuration.
The Advanced series ultrapure water machine incorporates the ELITE water treatment technology developed by AiKe, with multiple system modules upgraded. Under the same water usage standards, the service life of consumables has been extended by 20% compared to the previous generation. It features a built-in ultrapure water circulation program, with a selectable water production capacity ranging from 4 to 60 liters per hour.
The new generation Exceed series ultrapure water system rapidly produces ultrapure water and purified water, with optional output capacity ranging from 6-100 liters/hour. The ultrapure water resistivity reaches 18.25MΩ·cm.
complying with Grade 1 water quality standards established by GB/T6682-2008, GB/T33087-2016, ASTM, CAP, CLSI, EP, and USP.
