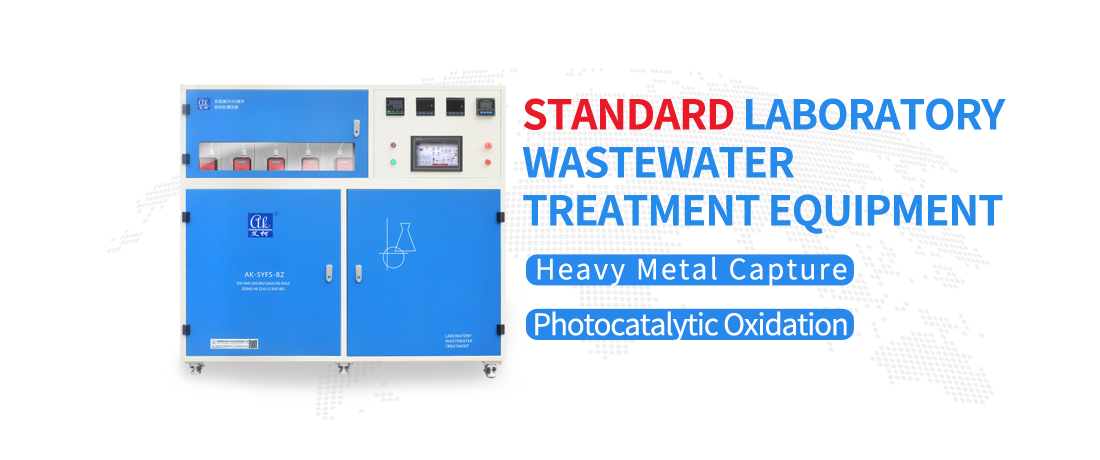

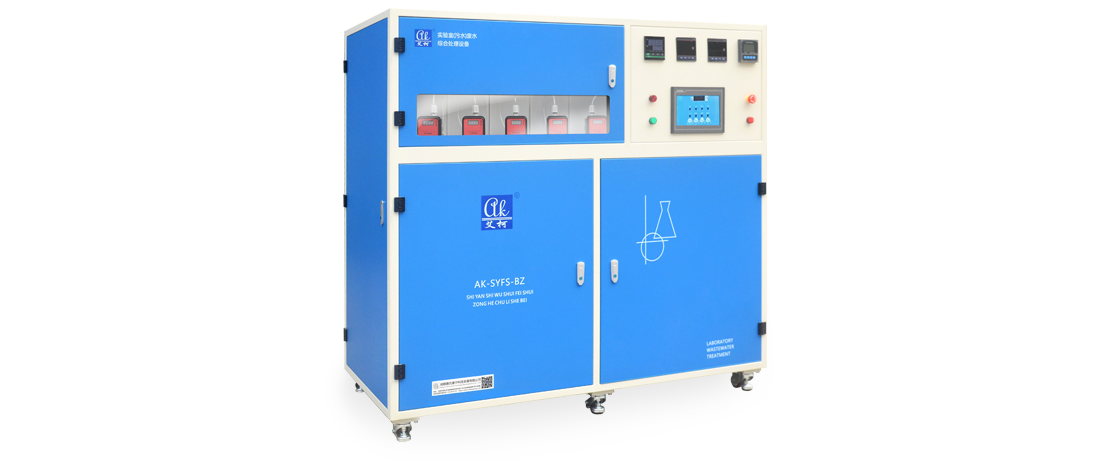

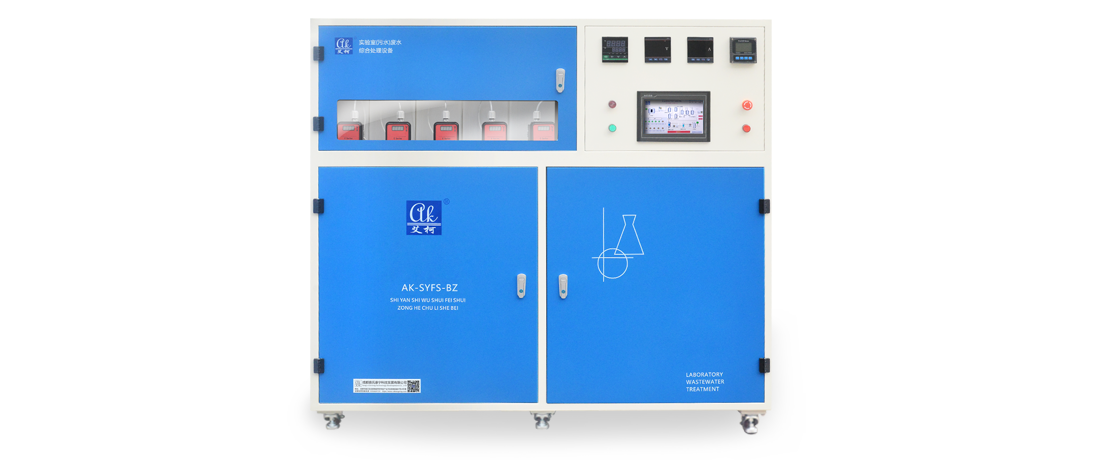

The AiKe Standard Laboratory Integrated Wastewater (Sewage) Treatment System employs an AK-dedicated PLC (Programmable Logic Controller) fully automatic intelligent centralized control system. This equipment is specifically designed to address the complexity of laboratory wastewater, with customized processes tailored to different laboratory requirements.
The equipment features a mature treatment process that generates no secondary pollution such as waste residue, waste gas, or wastewater, effectively protecting the environment. Simultaneously, it is constructed from corrosion-resistant materials, characterized by low noise, low power consumption, and multiple protective features. With a treatment capacity ranging from 0.3T/D to 3T/D (tons per day), it complies with the relevant requirements of national standards, including the "Integrated Wastewater Discharge Standard" (GB8978-1996), the "Discharge Standard of Water Pollutants for Medical Institutions" (GB18466-2016), and the "Water Quality Standard for Sewage Discharged into Municipal Sewers" (GB/T 31962-2015).
| Specification | Detailed Parameters |
|---|---|
| machine category | AK-SYFS-BZ Series |
| SeriesModel Number | AK-SYFS-BZ |
| Production Capacity | 300L-3000L/D |
| External Dimensions | Length 1800 × Width 800 × Height 1580 mm |
| Operating Power | N<3KW |
| Power Supply Input | AC220V/380V |
| Net Weight of Equipment | 400KG |
| Floor Space | 3×2 square meters |
| Water treatment quality standards | Integrated Wastewater Discharge Standard (GB8978-1996) |
| Discharge Standard of Water Pollutants for Medical Institutions(GB18466-2016) | |
| Water Quality Standards for Sewage Discharge into Municipal Sewers(GB/T 31962-2015) | |
| User-specified treatment requirements orlocal relevant wastewater discharge policies |
| Wastewater Type | Specific Contents | |||
|---|---|---|---|---|
| Specific Contents | Mercury | Cadmium | Total Chromium | Hexavalent Chromium |
| Lead | Manganese | Silver | Zinc | |
| Iron | Cobalt | Tin | Magnesium | |
| Copper | Aluminum | Arsenic | Other Metal Cations | |
| Non-Metal Ions | Free Cyanide | Fluoride | AsO₃²⁻ | AsO₄³⁻ |
| Complex Ion Compounds | Cyanide Compounds | Hydrofluoric Acid | ||
| Acid-Base pH | Nitric acid | Hydrochloric acid | Phosphoric acid | Sulfuric acid |
| Hydrogen peroxide | Potassium chloride | Calcium chloride | ||
| Organic Substances | Organic solvents | Detergents | Formaldehyde | Acetaldehyde |
| Toluene | Xylene | Aniline | Surfactants | |
| Phenol | Mixtures | |||
| Inorganic Substances | Inorganic Salts | Nitrogen Fertilizers | Phosphate Fertilizers | Sulfuric Acid |
| Nitric Acid | Soda Ash | |||
| Microorganisms | Pathogens | Bacteria | Viruses | Chlamydia |
| Mycoplasma | Spirochetes | Fungi | Brucella | |
| Bacillus anthracis | ||||
The AiKe micro-sized wastewater treatment equipment is equipped with a PLC (Programmable Logic Controller) for fully automatic control. Its interface is simple, direct, and visual, featuring a fault alarm indicator that makes system malfunctions immediately apparent.
The AiKe small-scale integrated laboratory wastewater (sewage) treatment equipment can effectively remove COD, BOD, SS, color, viruses, organic solvents, heavy metal ions, and other pollutants. It occupies a small footprint, offers fast treatment speed, and is convenient for installation and maintenance.
The AiKe advanced deep-treatment laboratory integrated wastewater (sewage) treatment equipment employs AiKe's cutting-edge deep-treatment technology, which combines processes such as wastewater collection, electrolysis, sedimentation, oxidation, porous gap adsorption, and biological treatment.
The AiKe outdoor laboratory integrated wastewater (sewage) treatment equipment adopts a "one-stop" integrated design, featuring a small footprint, rapid treatment speed, convenient installation and mobility, high treatment capacity, excellent treatment effects, low energy consumption, noise-free operation, and leak-proof performance, truly achieving the engineering equipment standard.
