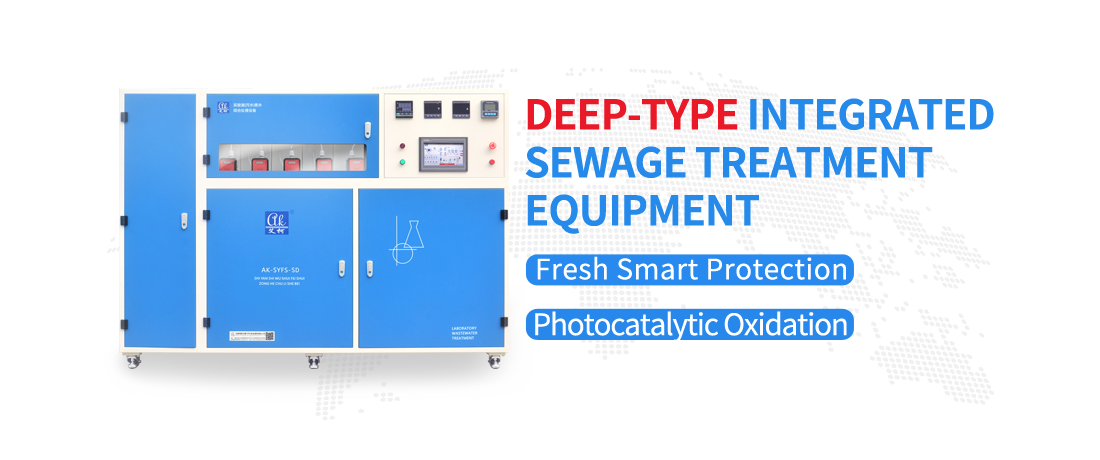

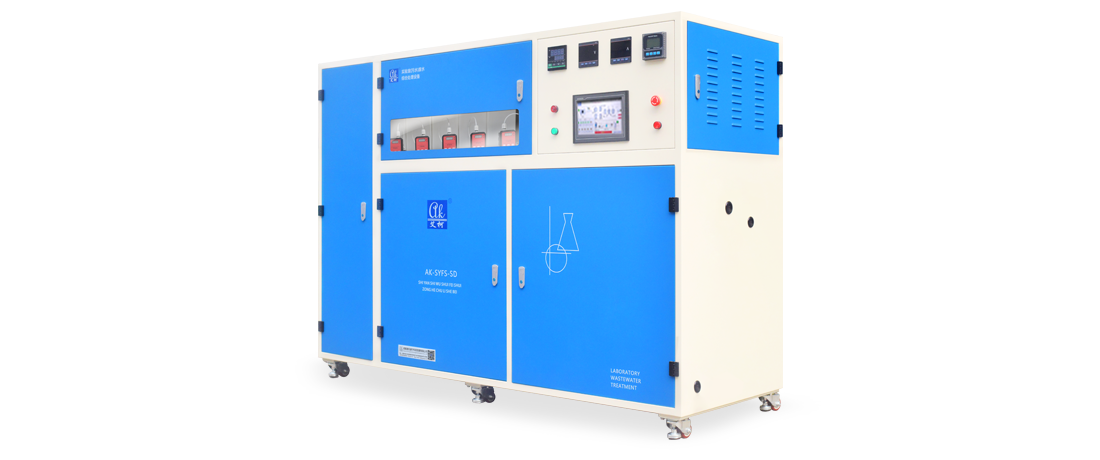

The AiKe Deep-Treatment Laboratory Integrated Wastewater (Sewage) Treatment Equipment employs AiKe's cutting-edge deep-treatment technology, which combines processes such as wastewater collection, electrolysis, sedimentation, oxidation, porous gap adsorption, and biological treatment. This integrated approach effectively removes various types of wastewater pollutants.
The AK-SYFS-SD series of wastewater treatment equipment utilizes brand-new modular integrated technology, offering convenient operation, stable performance, excellent wastewater treatment results, and no secondary pollution. With a treatment capacity ranging from 0.3T/D to 3T/D (tons per day), it complies with the relevant requirements of national standards, including the "Integrated Wastewater Discharge Standard" (GB8978-1996), the "Discharge Standard of Water Pollutants for Medical Institutions" (GB18466-2016), and the "Water Quality Standard for Sewage Discharged into Municipal Sewers" (GB/T 31962-2015).
| Specification | Detailed Parameters |
|---|---|
| machine category | AK-SYFS-SD Series |
| SeriesModel Number | AK-SYFS-SD |
| Production Capacity | 300L-3000L/D |
| External Dimensions | Length 2180 × Width 800 × Height 1580 mm |
| Operating Power | N<3KW |
| Power Supply Input | AC220V/380V |
| Net Weight of Equipment | 400KG |
| Floor Space | 4×3 square meters |
| Water treatment quality standards | Integrated Wastewater Discharge Standard (GB8978-1996) |
| Discharge Standard of Water Pollutants for Medical Institutions(GB18466-2016) | |
| Water Quality Standards for Sewage Discharge into Municipal Sewers(GB/T 31962-2015) | |
| User-specified treatment requirements orlocal relevant wastewater discharge policies |
| Wastewater Type | Specific Contents | |||
|---|---|---|---|---|
| Specific Contents | Mercury | Cadmium | Total Chromium | Hexavalent Chromium |
| Lead | Manganese | Silver | Zinc | |
| Iron | Cobalt | Tin | Magnesium | |
| Copper | Aluminum | Arsenic | Other Metal Cations | |
| Non-Metal Ions | Free Cyanide | Fluoride | AsO₃²⁻ | AsO₄³⁻ |
| Complex Ion Compounds | Cyanide Compounds | Hydrofluoric Acid | ||
| Acid-Base pH | Nitric acid | Hydrochloric acid | Phosphoric acid | Sulfuric acid |
| Hydrogen peroxide | Potassium chloride | Calcium chloride | ||
| Organic Substances | Organic solvents | Detergents | Formaldehyde | Acetaldehyde |
| Toluene | Xylene | Aniline | Surfactants | |
| Phenol | Mixtures | |||
| Inorganic Substances | Inorganic Salts | Nitrogen Fertilizers | Phosphate Fertilizers | Sulfuric Acid |
| Nitric Acid | Soda Ash | |||
| Microorganisms | Pathogens | Bacteria | Viruses | Chlamydia |
| Mycoplasma | Spirochetes | Fungi | Brucella | |
| Bacillus anthracis | ||||
The AiKe micro-sized wastewater treatment equipment is equipped with a PLC (Programmable Logic Controller) for fully automatic control. Its interface is simple, direct, and visual, featuring a fault alarm indicator that makes system malfunctions immediately apparent.
The AiKe small-scale integrated laboratory wastewater (sewage) treatment equipment can effectively remove COD, BOD, SS, color, viruses, organic solvents, heavy metal ions, and other pollutants. It occupies a small footprint, offers fast treatment speed, and is convenient for installation and maintenance.
The AiKe standard laboratory integrated wastewater (sewage) treatment equipment does not generate secondary pollution such as waste residue, waste gas, or wastewater, effectively protecting the environment. Meanwhile, the equipment is corrosion-resistant, features low noise and power consumption, and incorporates multiple protective features.
The AiKe outdoor laboratory integrated wastewater (sewage) treatment equipment adopts a "one-stop" integrated design, featuring a small footprint, rapid treatment speed, convenient installation and mobility, high treatment capacity, excellent treatment effects, low energy consumption, noise-free operation, and leak-proof performance, truly achieving the engineering equipment standard.
