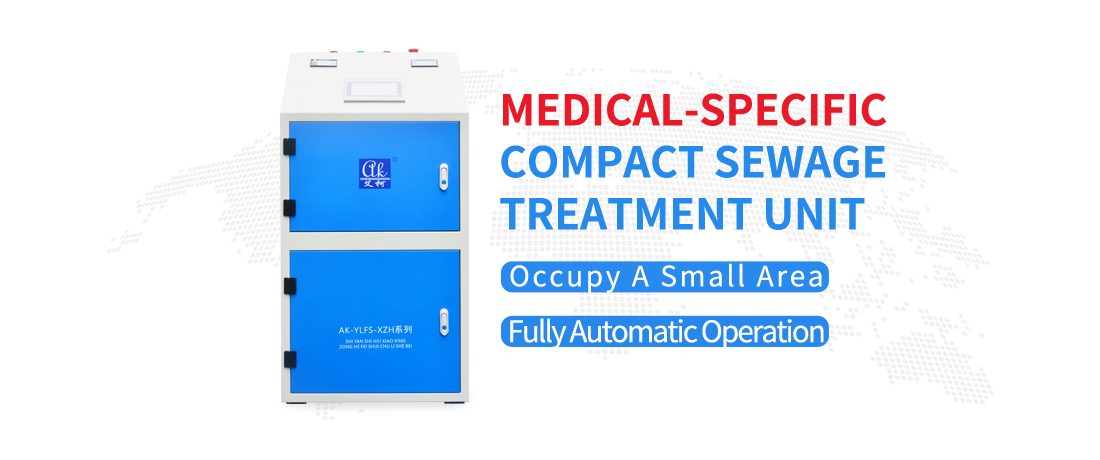

The AiKe micro-sized integrated wastewater treatment system utilizes the brand-new AiKe Wastewater System V1 version for precise control, enhancing reaction time and accuracy while reducing the failure rate. The program is designed with upgraded interfaces, and the interface is simple, direct, and visually intuitive.

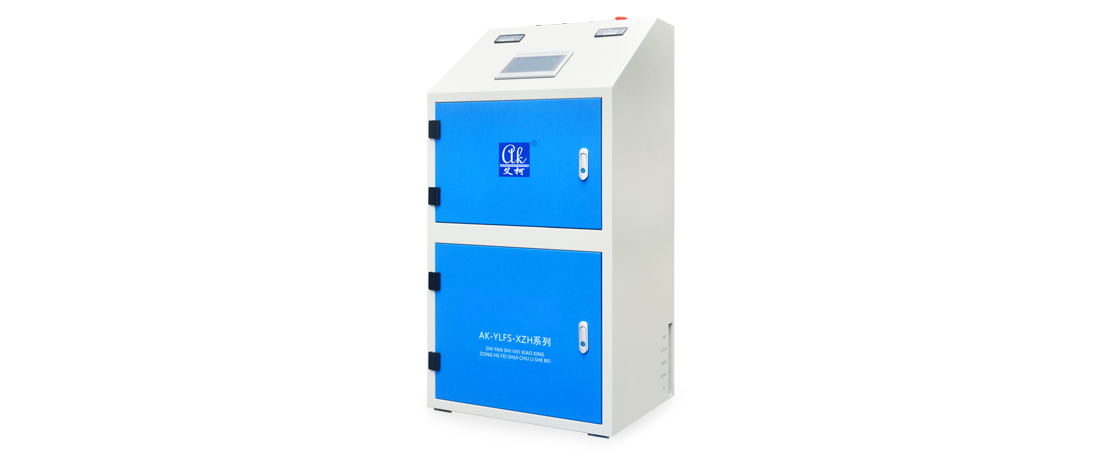

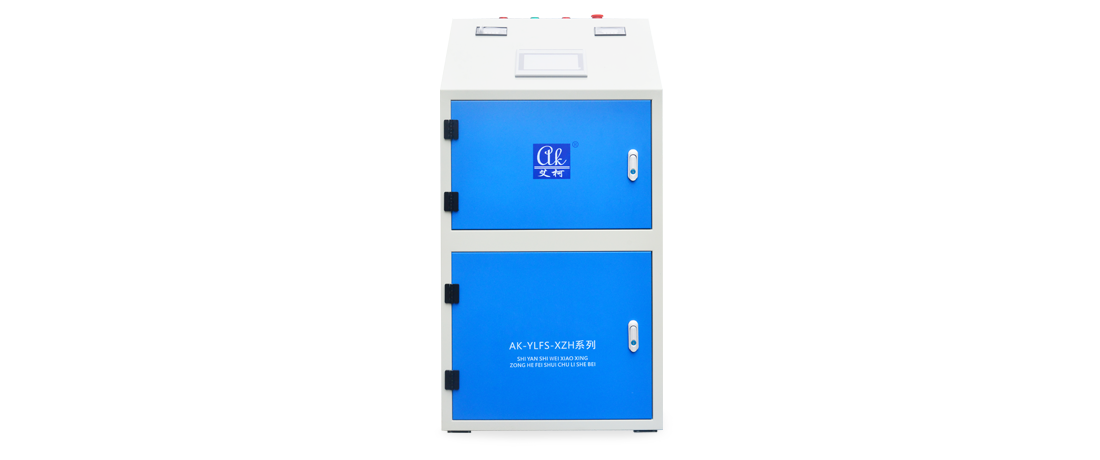

The AK-YLFS-XZH wastewater treatment system is equipped with a PLC (Programmable Logic Controller) fully automatic control system and a manual interface for human intervention. In the event of system operation failures, the system can be manually enabled. The upper part of the manual interface controls reagent treatment, while the lower part controls the operation of each process step. The manual mode is primarily used by AiKe engineers during debugging and troubleshooting, allowing them to forcibly enable specific sections of the system. With the addition of fault alarm prompts, system failures are immediately apparent, making maintenance more straightforward and simple. This system complies with the relevant requirements of national standards, including the "Integrated Wastewater Discharge Standard" (GB8978-1996), the "Discharge Standard of Water Pollutants for Medical Institutions" (GB18466-2016), and the "Water Quality Standard for Sewage Discharged into Municipal Sewers" (GB/T 31962-2015).
| Specification | Detailed Parameters |
|---|---|
| machine category | AK-YLFS-XZH Series |
| SeriesModel Number | AK-YLFS-XZH |
| Production Capacity | <100L/D |
| External Dimensions | Length 610 × Width 480 × Height 1200 mm |
| Operating Power | N=0.55KW |
| Net Weight of Equipment | 100KG |
| Power Supply Input | AC220V/380V |
| Floor Space | 2 square meters |
| Water treatment quality standards | Integrated Wastewater Discharge Standard (GB8978-1996) |
| Water Quality Standards for Sewage Discharge into Municipal Sewers(GB/T 31962-2015) | |
| Discharge Standard of Water Pollutants for Medical Institutions(GB18466-2016) | |
| User-specified treatment requirements orlocal relevant wastewater discharge policies |
| Wastewater Type | Specific Contents |
|---|---|
| Specific Contents | Acidic Dental Instrument Wastewater |
| Surgical Instrument Rinse Wastewater (Blood/Tissue-Contaminated) | |
| Lab Organic Chemical Wastewater | |
| Pharmacy Residual Drug Wastewate | |
| Clinic/Ward Floor Disinfectant Rinse Wastewater |
The AiKe small-scale integrated laboratory wastewater (sewage) treatment equipment can effectively remove COD, BOD, SS, color, viruses, organic solvents, heavy metal ions, and other pollutants. It occupies a small footprint, offers fast treatment speed, and is convenient for installation and maintenance.
The AiKe standard laboratory integrated wastewater (sewage) treatment equipment does not generate secondary pollution such as waste residue, waste gas, or wastewater, effectively protecting the environment. Meanwhile, the equipment is corrosion-resistant, features low noise and power consumption, and incorporates multiple protective features.
The AiKe advanced deep-treatment laboratory integrated wastewater (sewage) treatment equipment employs AiKe's cutting-edge deep-treatment technology, which combines processes such as wastewater collection, electrolysis, sedimentation, oxidation, porous gap adsorption, and biological treatment.
The AiKe outdoor laboratory integrated wastewater (sewage) treatment equipment adopts a "one-stop" integrated design, featuring a small footprint, rapid treatment speed, convenient installation and mobility, high treatment capacity, excellent treatment effects, low energy consumption, noise-free operation, and leak-proof performance, truly achieving the engineering equipment standard.
