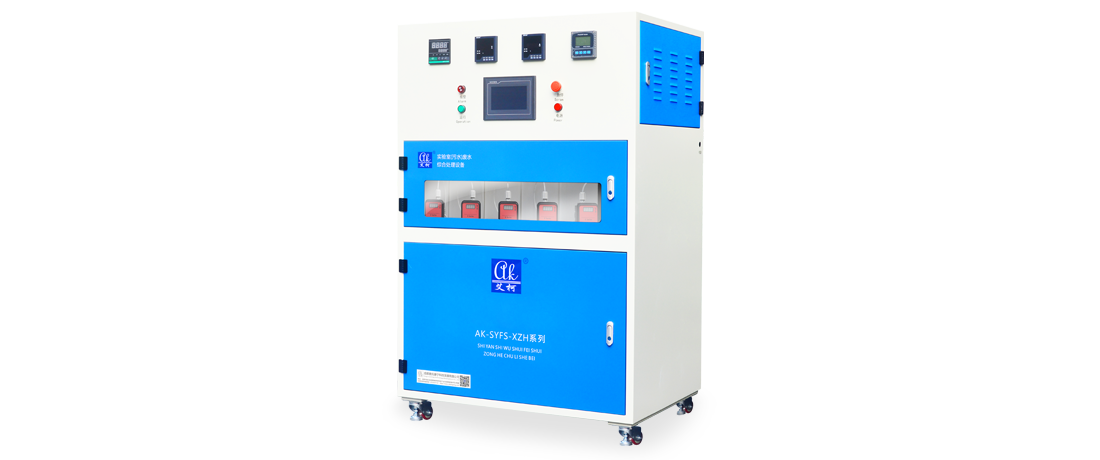

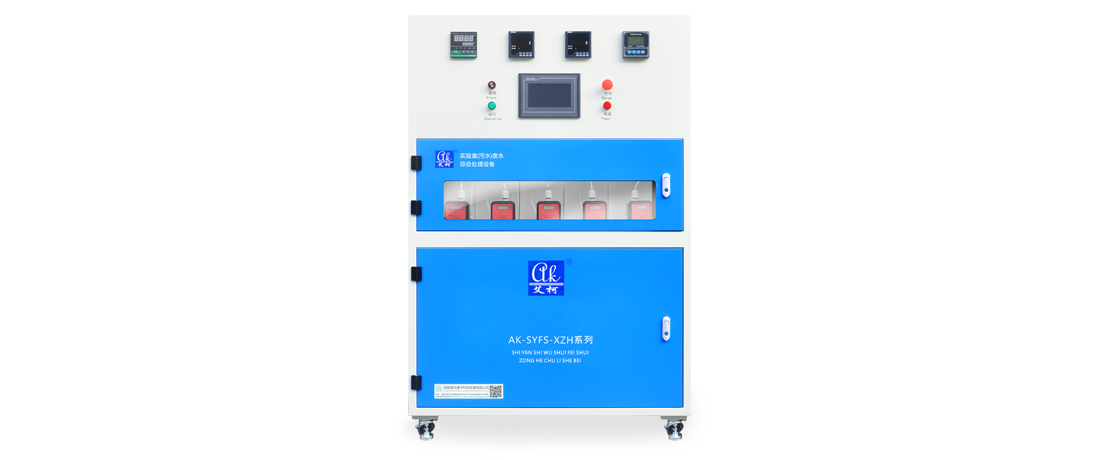

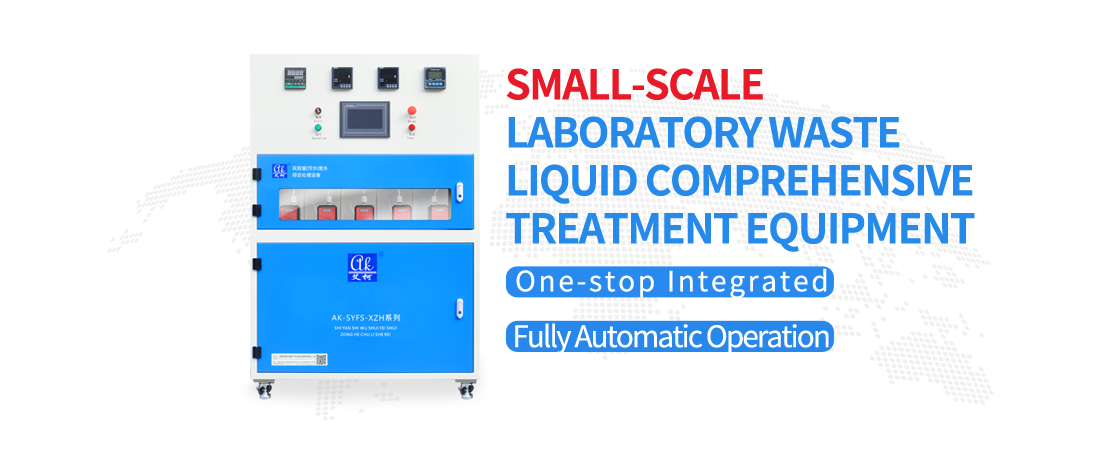

The AiKe Small-scale Integrated Laboratory Wastewater (Sewage) Treatment Equipment adopts a brand-new generation of intelligent integrated wastewater treatment system. Designed by AiKe's R&D team in consideration of the complexity of various laboratory wastewaters, it is suitable for the comprehensive treatment of wastewater/waste liquid in diverse laboratory settings. The equipment features an integrated design that effectively removes COD (Chemical Oxygen Demand), BOD (Biological Oxygen Demand), SS (Suspended Solids), color, viruses, organic solvents, and heavy metal ions.
The AK-SYFS-XZH series of wastewater treatment equipment boasts a small footprint, fast processing speed, and convenient installation and maintenance. With a treatment capacity of 0.1T/D or 0.2T/D (tons per day), it complies with the relevant requirements of national standards, including the "Integrated Wastewater Discharge Standard" (GB8978-1996), the "Discharge Standard of Water Pollutants for Medical Institutions" (GB18466-2016), and the "Water Quality Standard for Sewage Discharged into Municipal Sewers" (GB/T 31962-2015).
| Specification | Detailed Parameters |
|---|---|
| machine category | AK-SYFS-XZH Series |
| SeriesModel Number | AK-SYFS-XZH |
| Production Capacity | 100L-200L/D |
| External Dimensions | Length 1030 × Width 760 × Height 1580 mm |
| Operating Power | N<2KW |
| Power Supply Input | AC220V/380V |
| Net Weight of Equipment | 300KG |
| Floor Space | 4×3 square meters |
| Water treatment quality standards | Integrated Wastewater Discharge Standard (GB8978-1996) |
| Discharge Standard of Water Pollutants for Medical Institutions (GB18466-2016) | |
| Water Quality Standards for Sewage Discharge into Municipal Sewers(GB/T 31962-2015) | |
| User-specified treatment requirements orlocal relevant wastewater discharge policies |
| Wastewater Type | Specific Contents | |||
|---|---|---|---|---|
| Specific Contents | Mercury | Cadmium | Total Chromium | Hexavalent Chromium |
| Lead | Manganese | Silver | Zinc | |
| Iron | Cobalt | Tin | Magnesium | |
| Copper | Aluminum | Arsenic | Other Metal Cations | |
| Non-Metal Ions | Free Cyanide | Fluoride | AsO₃²⁻ | AsO₄³⁻ |
| Complex Ion Compounds | Cyanide Compounds | Hydrofluoric Acid | ||
| Acid-Base pH | Nitric acid | Hydrochloric acid | Phosphoric acid | Sulfuric acid |
| Hydrogen peroxide | Potassium chloride | Calcium chloride | ||
| Organic Substances | Organic solvents | Detergents | Formaldehyde | Acetaldehyde |
| Toluene | Xylene | Aniline | Surfactants | |
| Phenol | Mixtures | |||
| Inorganic Substances | Inorganic Salts | Nitrogen Fertilizers | Phosphate Fertilizers | Sulfuric Acid |
| Nitric Acid | Soda Ash | |||
| Microorganisms | Pathogens | Bacteria | Viruses | Chlamydia |
| Mycoplasma | Spirochetes | Fungi | Brucella | |
| Bacillus anthracis | ||||
The AiKe micro-sized wastewater treatment equipment is equipped with a PLC (Programmable Logic Controller) for fully automatic control. Its interface is simple, direct, and visual, featuring a fault alarm indicator that makes system malfunctions immediately apparent.
The AiKe standard laboratory integrated wastewater (sewage) treatment equipment does not generate secondary pollution such as waste residue, waste gas, or wastewater, effectively protecting the environment. Meanwhile, the equipment is corrosion-resistant, features low noise and power consumption, and incorporates multiple protective features.
The AiKe advanced deep-treatment laboratory integrated wastewater (sewage) treatment equipment employs AiKe's cutting-edge deep-treatment technology, which combines processes such as wastewater collection, electrolysis, sedimentation, oxidation, porous gap adsorption, and biological treatment.
The AiKe outdoor laboratory integrated wastewater (sewage) treatment equipment adopts a "one-stop" integrated design, featuring a small footprint, rapid treatment speed, convenient installation and mobility, high treatment capacity, excellent treatment effects, low energy consumption, noise-free operation, and leak-proof performance, truly achieving the engineering equipment standard.
